Custom Drop Bottom Furnaces

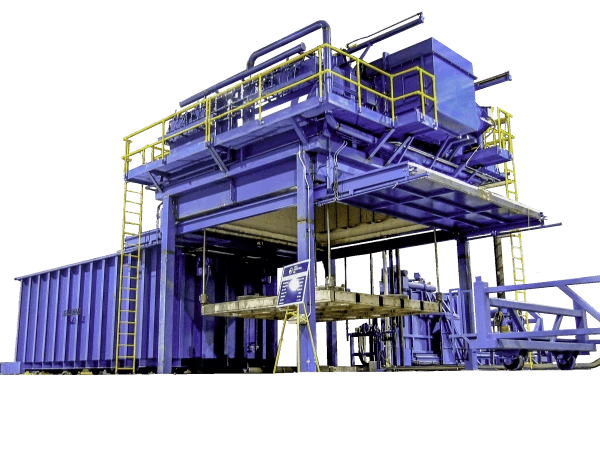

 Automated Drop Bottom Furnace with Quench

Featured:
Drop Bottom Furnace

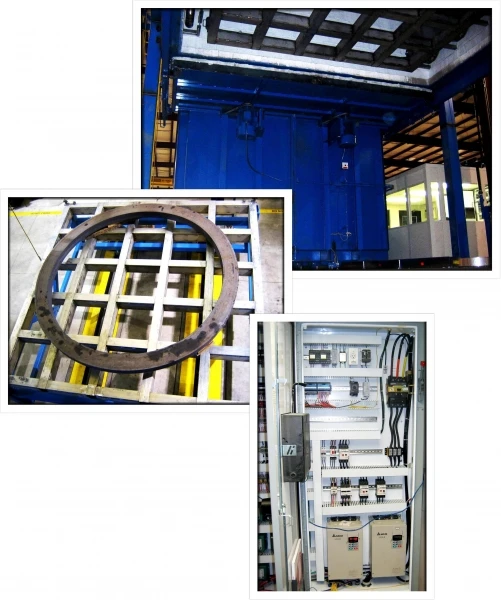

Large automated bottom load elevator batch furnace with quench tank, also referred to as a drop bottom heat treat solution furnace . Built in 2007, this automated system is used in the forging of large seamless aluminum rolled rings for a number of different industries.  Visit our photo gallery for more Drop Bottom Furnace photos.

High Speed Automated Drop Bottom Heat Treat Furnace

 Automated Drop Bottom Furnace with Quench

Featured:
Drop Bottom Furnace
Large automated bottom load elevator batch furnace with quench tank, also referred to as a drop bottom heat treat solution furnace . Built in 2007, this automated system is used in the forging of large seamless aluminum rolled rings for a number of different industries.  Visit our photo gallery for more Drop Bottom Furnace photos.

High Speed Automated Drop Bottom Heat Treat Furnace

Kleenair Products designs, engineers, builds, and installs custom drop bottom furnaces to your exact specifications. We have the experience and the expertise to create the perfect custom drop bottom elevator furnace for your specific application. With proven batch furnace technology and innovative designs, we provide custom solutions that meet our customers’ unique requirements.

Kleenair Products will work with you to develop a custom drop bottom furnace that delivers the performance you need in a footprint that fits your space. Contact us for more information regarding our drop bottom furnace options, or call us at 800-275-5152 today to discuss your project!

High Speed Drop Bottom Furnaces Engineered & Built to Your Exact Specifications

Utilizing high speed actuators and a hydraulically driven servo-elevator that deliver quench tank load in as little as 10 seconds, Kleenair’s custom drop bottom elevator furnaces are ideal for solution heat treating of aluminum alloys and similar heat treat-and-quench processes. Drop bottom furnace options from Kleenair can reach temperatures as high as 1,100°F (593°C), with Class 1 through Class 5 temperature uniformity. Our high-speed drop bottom furnaces can also effectively lift large loads up to 20,000 lbs. Additional beneficial features include:

  • Advanced quality door seals, door hinges, and door actuators
  • Elevator mechanisms are housed in the body of the furnace
  • High speed door actuators
  • High speed hydraulic elevator with servo motors
  • Quench tank is included in design; moves into place automatically
  • Natural gas or electric heat options
  • State-of-the-art control systems/HMIs for easy operation
  • Built to last with heavy duty construction
  • Meet NFPA 86 and OSHA requirements

Why Choose a Drop Bottom Furnace Over Other Heat Treatment Methods?

Since they are exclusively used for the heat treatment of aluminum alloys, drop bottom furnaces provide the quick quench times that are necessary for premium aluminum part production. Kleenair manufactured drop bottom furnaces are extremely flexible and energy-efficient, while maintaining the tight tolerances that your parts require. Additionally, each custom manufactured drop bottom furnace that we produce can be designed to meet all requirements of AMS 2750D, AMS 2770H, and BAC specifications.

High Speed Drop Bottom Furnace Specifications

With more than 50 years of industry experience to our name, Kleenair Products’ drop bottom batch furnaces are custom manufactured to your exact specifications. At Kleenair, we manufacture custom drop bottom furnaces with the following specification options:

Temperature Ranges

Kleenair manufactures drop bottom furnaces with a maximum temperature point of 1,100°F (593°C). Our drop bottom elevator batch furnaces can also be custom designed with a +/-5°F differential and can operate as low as 250°F to allow for Aging and Annealing based on exact customer requirements.

Heat Source

Depending on your heating source needs, we offer both natural gas and electric drop bottom furnace options.

Power Source

Kleenair manufactures drop bottom furnaces with Main Power Supplies with 208 to 690 Volt AC, 50 and 60 HZ and Control Voltage of 24 Volt DC or 120/220 Volt AC.

Material Handling Options

We custom build either powered or manual car material handling structures with the Vertical Cable Hoist System being operated by pneumatics or hydraulics.

Contact Kleenair Products for Custom Manufactured Drop Bottom Furnaces Today

At Kleenair Products we will design, engineer, build, and install the perfect drop bottom furnace for your needs, based on your unique specifications and application requirements. We take pride in delivering the most dependable, highest quality furnaces in the industry, with superior ease of use and temperature uniformity.

Contact us for more information on our custom high speed drop bottom elevator furnace options or request a quote for further pricing details today. Kleenair Products is your trusted source for the industry’s finest drop bottom furnace options.
